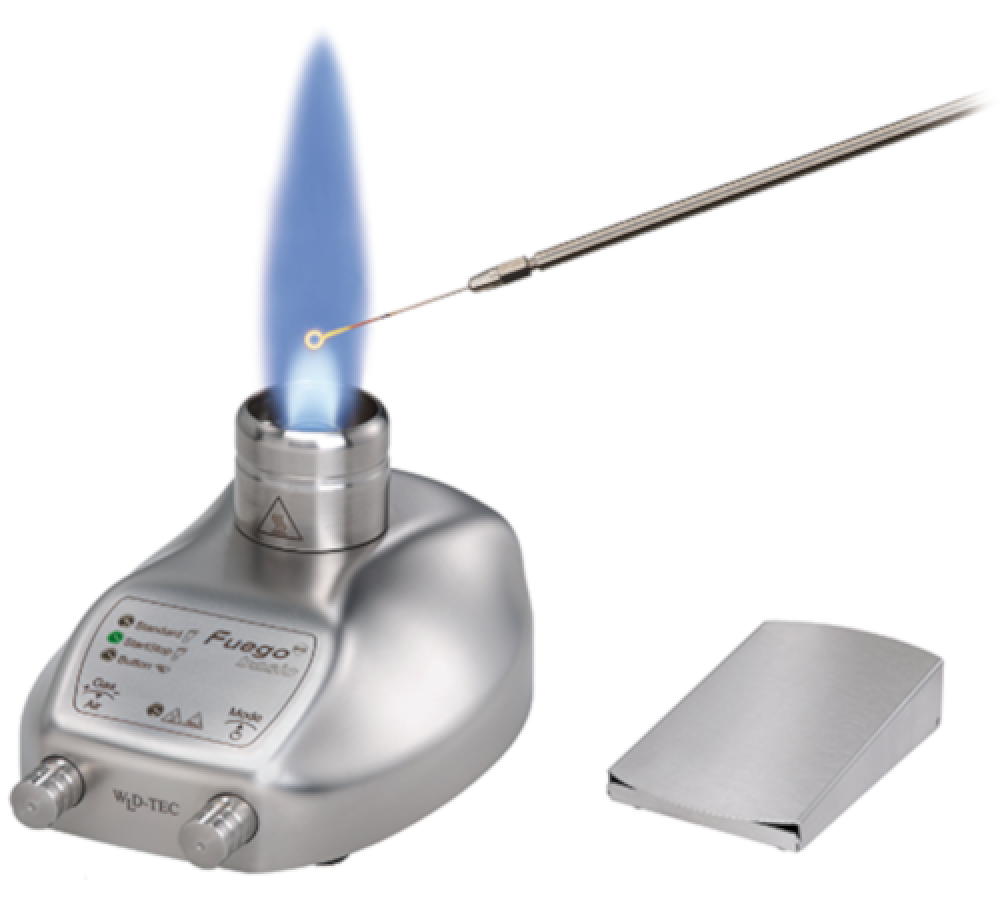

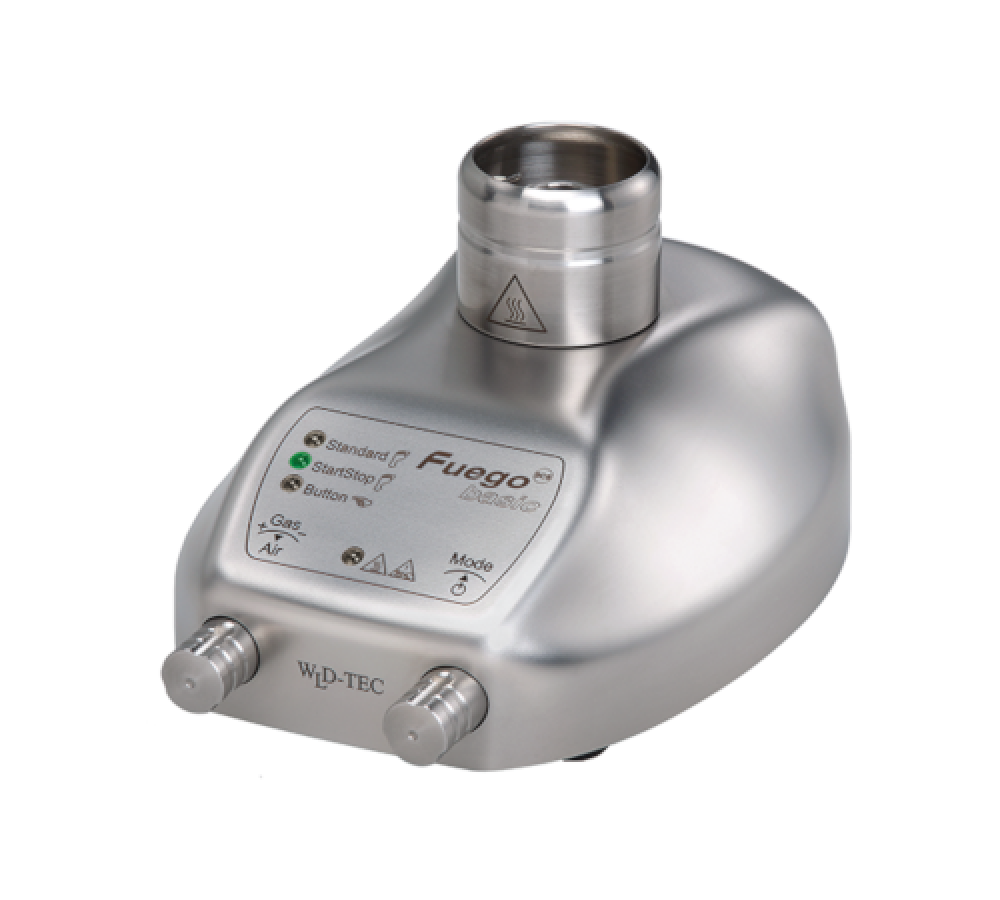

Fuego SCS basic

The Fuego SCS basic  represents a new standard among laboratory gas burners. With its innovative design this laboratory gas burner is suitable for all flame related applications in the laboratory.

Simple and Safe Operation
The Fuego SCS basic can be operated with a foot pedal or the button function. Three programs are available: flexible start-stop functions and the conventional foot pedal operation for short flame sterilization. The Fuego SCS basic is also suitable for connection to the fully automated innoculation loop carrousel autoloop Pro.

Flame Sterilizing with Button Function
WLD-TEC offers an additional alternative for safe flame sterilizing. With the button function the flame can be started and stopped easily by pushing the function knob.

Modern Design
The unique shape is eye-catching. The Fuego SCS basic is extremely space-saving. Measurements: 103 x 49 x 130 mm (w x h x d). The low profile body facilitates ergonomic operation; the streamlined design reduces air flow disturbances in a clean room workbench to a minimum.

Unit come with:
- Stainless steel foot pedal, 3 standard-programs for foot pedal and button (function knob).
- SCS (Safety Control System), BHC (Burner Head Control).
- Removable and decomposable burner head.
- Tilt mechanism right/left.
- Holding device for 3 inoculation loop holders.
- Nozzles for natural, propane/butane gas, Turbo flame.
- Wrench 17mm for gas connection.
- Screwdriver for burner head and a cover of burner shaft.
- Tubing connector with swivel nut.
